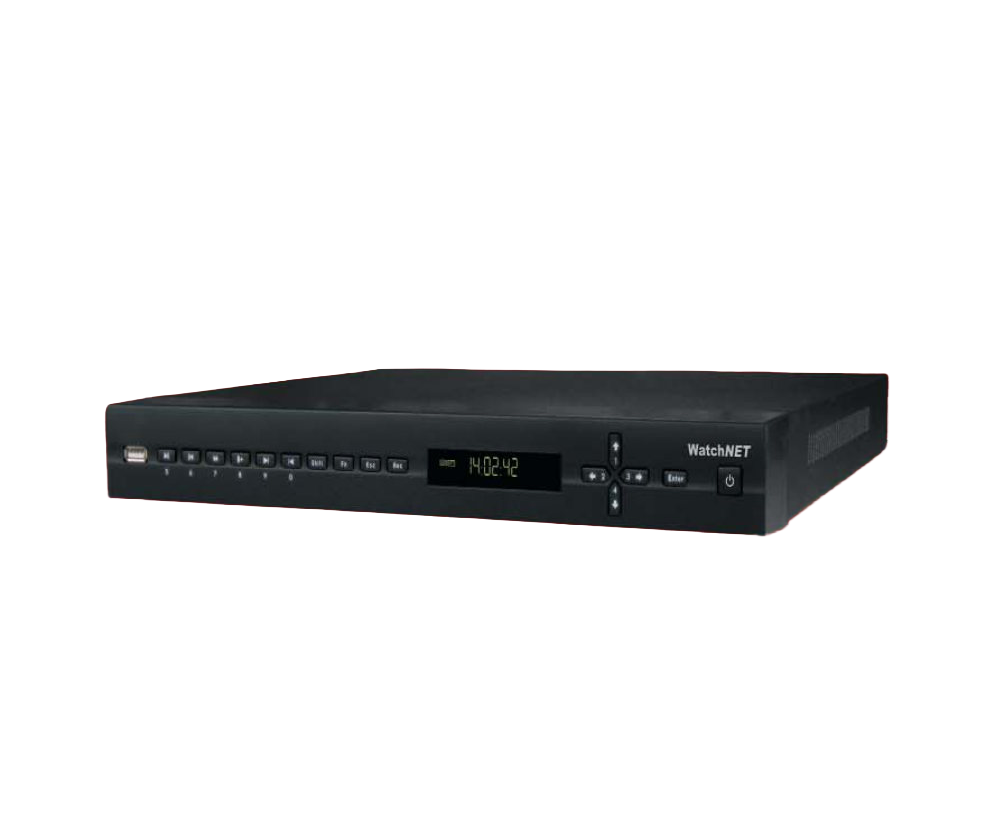

WatchNet ES-12004-RTS-KIT (Renewed)

Key Features

Professional 4-channel DVR with HDMI output and real-time recording capabilities

• Enhanced H.264 compression - saves storage space and bandwidth
• Real-time recording up to 400/480 fps for CIF format
• Multiple display options - HDMI, VGA, and BNC outputs with 720P HD support
• Pentaplex operation - simultaneously live view, record, playback, backup & remote access

Recording & Display

• 4 video channels with BNC inputs (PAL/NTSC compatible)
• Recording formats: D1, CIF, QCIF with variable frame rates
• Display modes: 1 and 4 channel split screen views
• Audio recording: 4 audio channels with bidirectional talk support

Smart Detection & Alerts

• Advanced motion detection with 396 detection zones and 6 sensitivity levels
• Alarm system: 4 alarm inputs, 3 relay outputs
• Smart alerts: Email notifications, FTP upload, video loss detection
• Privacy features: Masking zones and camera lock functionality

Remote Access & Control

• Network connectivity: Built-in Ethernet port with web server
• Mobile monitoring: Smartphone app included
• Remote functions: Live viewing, playback, PTZ control, system management
• Multiple control options: Front panel, IR remote, USB mouse, network keyboard

PTZ & Integration

• PTZ support: Up to 60 camera protocols with 3D mouse control
• Business integration: ATM and POS system compatibility
• Backup options: USB devices, CD/DVD, network download

Technical Specs

• Dimensions: 375×285×45mm (1U rack mountable)
• Power: 25W consumption, 220V/110V compatible
• Operating range: -10°C to +55°C, 10-90% humidity
• Weight: 2.35kg
• Interfaces: 2×USB, RS232, RS485

What's Included

• ES-12004RTS DVR unit with 250GB HDD pre-installed
• IR remote control and power adapter
• Network client software and user manual

Perfect for small businesses, retail stores, offices, and home security applications.
